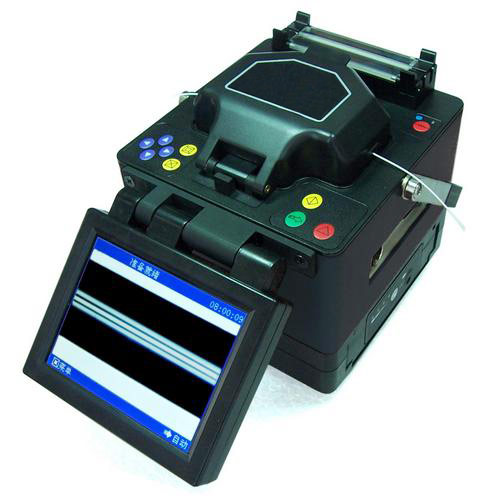

Fusion Splicer[big]
Download
Download

Description

Features:

  • High definition LCD display
  • PAS technology
  • Core or cladding alignment
  • Double heaters, 30 sec. tube-heat time
  • 3 magnification modes max. 360 magnifications
  • 4 display modes, fiber core visible
  • 8 sec. splice time
  • Lithium battery
  • Max wind velocity of 15m/s
  • Splicing method: auto, manual
  • Store 8000 groups of splice results
  • USB interface

Specifications

Applicable fibers SM, MM, DS, NZDS, G655,G657 and others
Cladding diameter
 100 to 150mm
Coating diameter
 100 to 1000mm
Fiber cleaved length
 8-22mm (standard)
Splicing mode
 Auto & Manual
Average splice loss
 0.02dB(SM) , 0.01dB(MM) , 0.04dB(DS) , 0.04dB(NZDS)
Return loss
 > 60dB
Environment conditions
 -25~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment
 -40~+80°C (temperature), 0~95%RH (humidity)
Protection sleeve length
 20mm , 40mm , 60mm
Tension test
 2.0N (Standard)
Language English, Chinese, Korea, Russian, Spanish etc.
Interface RS232 interface & video output
AC adaptor : 85 ~260V input voltage
Power Supply
 Internal battery : 12V voltage, 10Ah, than 200 times of continuous splices and heats
DC adaptor : 12V voltage, optional multipurpose external battery
Dimensions 170 (W) x 140 (H) x 170 (D) mm
Weight 3.3kg
